| Model | HCZ-20W/ HCZ-3W/HCZ- 50W |
|---|---|
| Working size | 110x110mm / 175x175mm / 220x220mm |
| Laser power | 20w / 30w / 50w |
| Laser Brand | Raycus MAX |
| Laser wavelength | 1064nm |
| Carving speed | ≤ 7000mm/s (mm / s) |
| Minimum line width | 0.02mm |
| Minimum carving size | 0.3mm |
| Repeatability | ≥±0.01mm |
| Software | EzCAD2 |
| Support graphic format | AI / PLT/ CDR / DXF / BMP / JPG /PNG etc. |
| Operating Voltage | AC 110V - 220V ± 10% 50-60 Hz |
| Upgrade function | Axis of rotation |
● Using 1064nm wavelength fiber laser, marking is fine, it can act on metal, some plastic products
● Can upgrade three red light focus, auto focus, purple marking

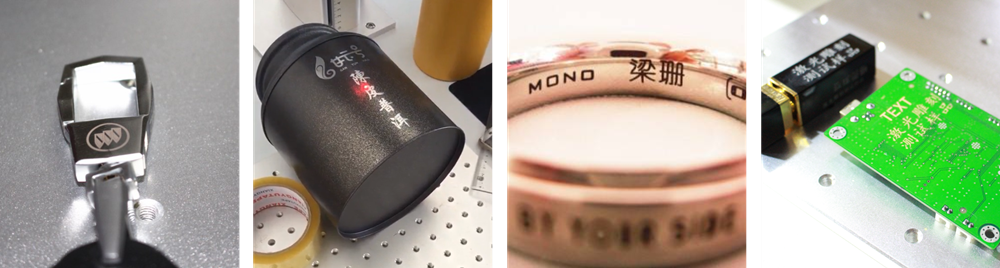

Application range:
